Mô tả

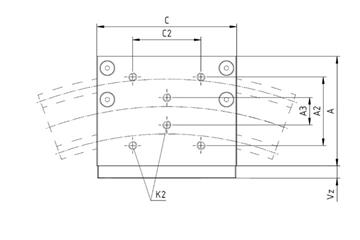

Dimensions
| A Width | 80 mm |
| C Length | 102 mm |
| A2 | 50,0 mm |
| C2 | 50 mm |
| K2 | M6 |
| H2 | 28,0 mm |
| A3 | 20,0 mm |
| Vz | 9 mm |
General properties
| Installation size | 10-40 |
| Matching curved rail | WSB-10-40-RX300 |
| Curve direction | Convex, concave |
| Bend radius | >R250 |
| Design | round |
| Material sliding element | iglidur® I3 |
| For bending direction | convex, concave |
