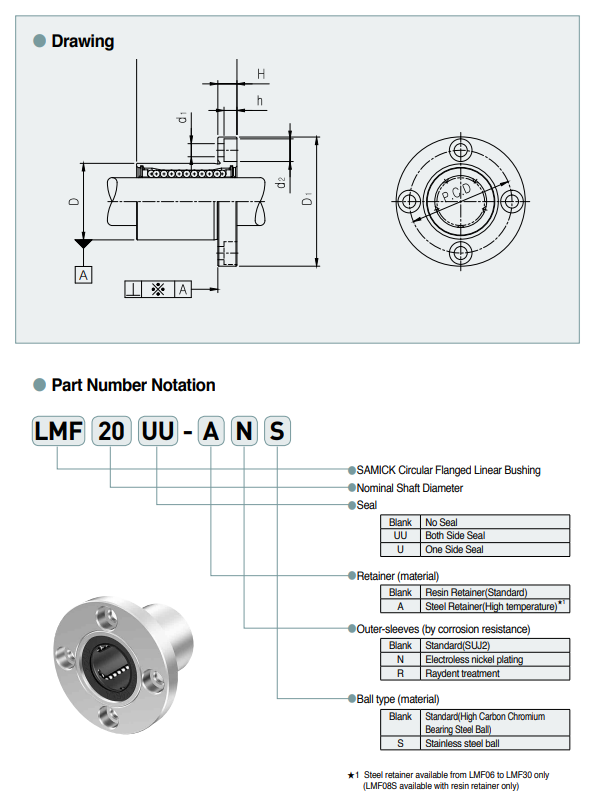

Nominal Code of Linear Bearing

LMF 20 UU ANS

※ Please click on the model number to view enlarged drawing.

PART NUMBER		WORKING BORE DIAMETER		D		L		D₁		H	PCD	d₁	d₂	h	SQUARE NESS ※(㎛)	BASIC LOAD RATING (N)		NO.OF BALL CIRCUIT	WEIGHT *(gf)²**
Resin	*Steel⁵**	dr. (mm)	Tole rance (mm)	mm	Tole rance (mm)	mm	Tole rance (mm)	mm	Tole rance (mm)	H	PCD	d₁	d₂	h	SQUARE NESS ※(㎛)	*DYNAMIC (C)¹**	STATIC (Co)	NO.OF BALL CIRCUIT	WEIGHT *(gf)²**
LMF06UU	LMF06-A	6	0-0.009	12	0-0.011	19	±0.2	28	0-0.2	5	20	3.4	6.5	3.2	12	200	260	4	26,5
LMF08SUU	–	8	0-0.009	15	0-0.011	17	±0.2	32	0-0.2	5	24	3.4	6.5	3.2	12	170	220	4	34
LMF08UU	LMF08-A	8	0-0.009	15	0-0.011	24	±0.2	32	0-0.2	5	24	3.4	6.5	3.2	12	260	400	4	40
LMF10UU	LMF10-A	10	0-0.009	19	0-0.013	29	±0.2	40	0-0.2	6	29	4.5	8.0	4.2	12	370	540	4	76
LMF12UU	LMF12-A	12	0-0.009	21	0-0.013	30	±0.2	42	0-0.2	6	32	4.5	8.0	4.2	12	410	590	4	78
LMF13UU	LMF13-A	13	0-0.009	23	0-0.013	32	±0.2	43	0-0.2	6	33	4.5	8.0	4.2	12	500	770	4	94
LMF16UU	LMF16-A	16	0-0.009	28	0-0.013	37	±0.2	48	0-0.2	6	38	4.5	8.0	4.2	12	770	1,170	5	134
LMF20UU	LMF20-A	20	0-0.010	32	0-0.016	42	±0.2	54	0-0.2	8	43	5.5	9.5	5.2	15	860	1,370	5	180
LMF25UU	LMF25-A	25	0-0.010	40	0-0.016	59	±0.3	62	0-0.2	8	51	5.5	9.5	5.2	15	980	1,560	6	340
LMF30UU	LMF30-A	30	0-0.010	45	0-0.016	64	±0.3	74	0-0.2	10	60	6.6	11.0	6.5	15	1,560	2,740	6	460
LMF35UU	–	35	0-0.012	52	0-0.019	70	±0.3	82	0-0.2	10	67	6.6	11.0	6.5	20	1,660	3,130	6	795
LMF40UU	–	40	0-0.012	60	0-0.019	80	±0.3	96	0-0.3	13	78	9.0	14.0	8.6	20	2,150	4,010	6	1,054
LMF50UU	–	50	0-0.012	80	0-0.019	100	±0.3	116	0-0.3	13	98	9.0	14.0	8.6	20	3,820	7,930	6	2,200
LMF60UU	–	60	0-0.015	90	0-0.022	110	±0.3	134	0-0.3	18	112	11.0	17.5	10.8	25	4,700	9,990	6	2,960
LMF80UU	–	80	0-0.015	120	0-0.022	140	±0.3	164	0-0.3	18	142	11.0	17.5	11.1	25	10,130	12,000	6	5,400

*1 Dynamic load rating is based on the nominal life of 50km

*2 Based on the weight of resin retainer

*3 Maint unit: ㎜

*4 1N ≒ 0.102kgf

*5 Steel retainer available from LMF06 to LMF30 only

(LMF08S available with resin retainer only)

Flanged Type Linear Bushing
